5.VLAN

1. VLAN
A virtual local area network, virtual LAN or VLAN, is a group of hosts with a common set of requirements that communicate as if they were attached to the same broadcast domain, regardless of their physical location. A VLAN has the same attributes as a physical local area network (LAN), but it allows for end stations to be grouped together even if they are not located on the same network switch.
VLAN membership can be configured through software instead of physically relocating devices or connections.

1.1 Create VLAN

This page allows user to add or delete VLAN ID entries and browser all VLAN entries that add statically or dynamic learned by GVRP. Each VLAN entry has a unique name, user can edit VLAN name in edit page.

1.2. VLAN Configuration

To display VLAN Configuration page, click VLAN > VLAN > VLAN Configuration
This page allow user to configure the membership for each port of selected VLAN.

1.3. Membership

To display Membership page, click VLAN > VLAN > Membership

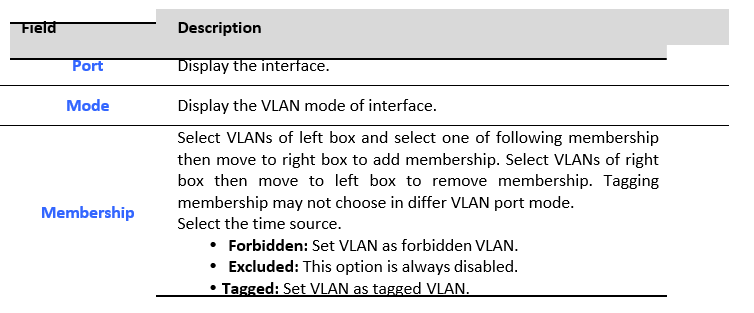

This page allow user to view membership information for each port and edit membership for specified interface

1.4 Port Setting
To display Port Setting page, click VLAN > VLAN > Port Setting

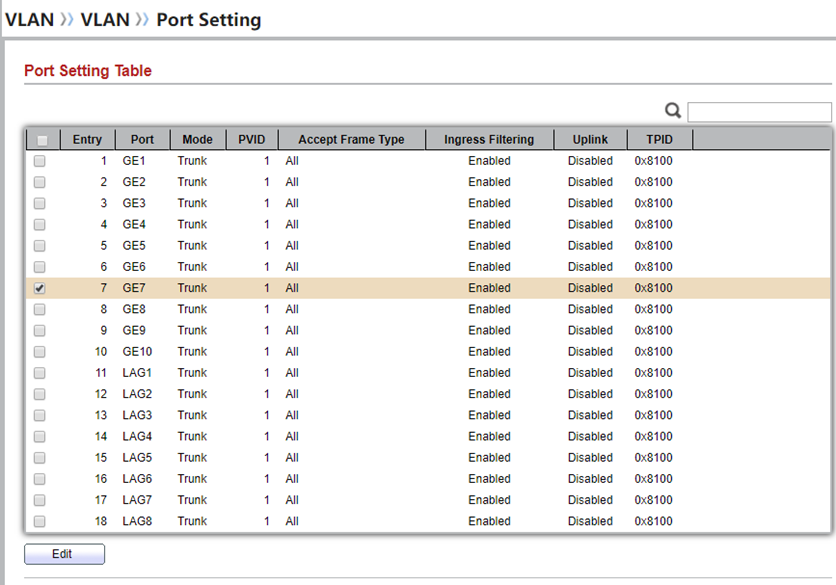

This page allow user to configure ports VLAN settings such as VLAN port mode, PVID etc…The attributes depend on different VLAN port mode.
