16.SNMP

1.SNMP
SNMP is the standard network management protocol widely used in TCP / IP networks. It can support the network management system to monitor any devices connected to the network whether to cause the management attention. The basic components of SNMP include network management system NMS (Network Management System), agent process (Agent), managed object (Managed Object) and management information database MIB (Management Information Base)
Click on the navigation bar: Configure- -> SNMP

2.Instance

1. Turn on the SNMP function

   2、Close the SNMP service with 162 ports

   3、Open the IReasoning MIB Browser software settings as shown above on the right panel.

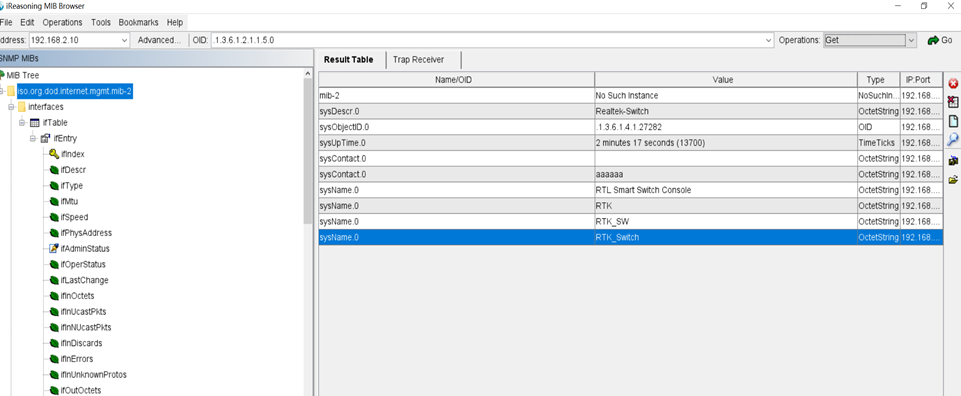

   4、Click on Get Next-> GO at MIB Browser to display the results as shown below

   5、The Get results after selecting set-> GO in MIB Browser Operations are shown as follows.


   6、Set the IP address of the management PC to the Trap IP address of the switch configuration, and receive the switch port status change information at MIB Browser Tools select Trap Receiver
